Topology

[Official Mobility Introduction]

Official page, I think it helpless for a newbie in ns3.

There are two modules inside.

  • PositionAllocator
    • This is for still.
  • MobilityHelper
    • This is for moving.

Your scenario must exist the Node, Mobility and NetDevice.

Below is something necessary in a topology.

  • Node

    Most of time I use NodeContainer to manipulate the nodes.

    • Create 30 nodes and do nothing.

      Create 30 Nodes source

      NodeContainer nodes;
      nodes.Create (30);

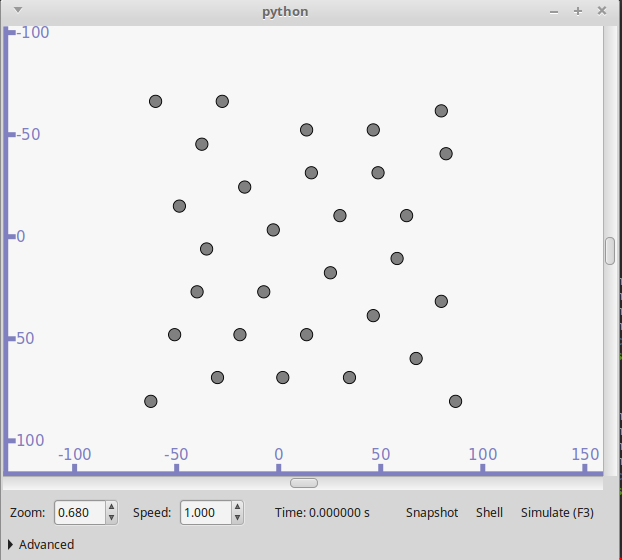

      The nodes without position assignment will be gray in pyviz.

    • Get the 5th node.
      nodes.Get (4);

    • Get the nodes number of NodeContainer
      nodes.GetN ();

    • Add another node to the NodeContainer
      Ptr<Node> another_node;
      nodes.Add (another_node);

  • Mobility

    The space coordinate of NS3 is x, y, and z axis. Unit is meter and variable type is double.

    Most of time I use MobiliityHelper and distinct PositionAllocator to help me place the node in the right place. but not all of the node needs a specific position to perch, Like in LTE, PDN Gateway, the example code from official didn't give it a position.

    For mobility, I use position allocator and mobility helper to decide nodes where and how to move.
